About the project

In Hagen, Germany, a turnkey, cutting-edge cold production and storage facility has been realized, replacing its fire-damaged predecessor.

With a focus on sustainability, resilience, and efficiency in the processing of vegetables and fruits and the cooling and storage of food products, the brand new Fruechte Boqoui facility incorporates advanced energy systems, seamless workflows, and innovative design principles. This unique project fully reflects STM Design & Build’s commitment to excellence.

Project highlights

State-of-the-art facility replacing its fire-lost predecessor

Unique, 80 millimeter raised foundation integrated into a hillside

50 meter free span for seamless workflows

500 kWp solar energy and CO2 cooling system

Full-service care, innovation, safety, and process focus

Built by STM Design & Build for both resilience and efficiency

No items found.

1/3

Full service care

From concept to completion, STM Design & Build managed every aspect of the Zenger project. The architectural and structural designs were developed in-house in collaboration with the client. Construction included fireproof FM Global-approved systems and fully insulated wall paneling, ensuring compliance with stringent industry standards. The steel structure was produced at STAWI, and STM oversaw all technical installations and interior finishing.

Process-focused design

The primary goal was to expand Zenger’s storage capacity. By first designing a maximized storage system, STM optimized the building’s shape and size to fit the plot and customer needs. The structural design prioritized an open layout, with strategically placed columns to ensure efficient workflows. Next, the facility’s fire safety systems, including a roof-integrated FM Global-approved sprinkler installation, offer industry-leading protection while maintaining its seamless design.

Future-proof innovation

Sustainability was central to the Zenger project. The facility features a 29.5 kWp solar power installation that powers essential systems, minimizing reliance on external energy sources. Insulated panels, local infrared heating, and Zumtobel LED lighting further enhance energy efficiency. These features ensure that the facility is ready to meet current and future environmental standards.

Trust & safety

STM’s strong partnership with the Zenger family allowed for streamlined communication and rapid decision-making. By entrusting STM with full responsibility, the project was completed within just 8 months, ensuring quality, cost efficiency, and customer satisfaction.

No items found.

1/3

The Fruechte Boqoui facility in Hagen sets a new standard for cold production and storage, with a strong focus on sustainability and advanced technology.

For optimal performance, the building is equipped with CO2 cooling, a solar-powered energy management system, and efficient workflows. With an elevation of 800 millimeters above the original foundation and a 50 meter free span, the new structure offers both more space and added capacity. Below is a detailed overview of all specifications and special features of this project.

General info

Project name: Fruechte Boqoui, Hagen
Address: Neue Str. 15, 58135 Hagen, Germany
Completion Date: 06.12.2024
Lead Time: 24 months
Original building was fully lost to fire
New building built on an extra 800 millimeters on top of existing building
Size of building increased from 2.500 tot 3.300 m2

Parcel and design

Building surface: 3.300m2
Building height: 10,00m1
Building internal free height: 8,50m1
Cooled production: 520m2
Cooled storage: 2.050m2
Freeze storage: 175m2
Cooled area: 555m2
Office floor: 780m2

Construction

Foundation: heightened an extra 800 millimeters on top of existing foundation
Clear span: 50 meters
Load capacity: to be determined

Technical installations

Cooling: CO2 cooling
Energy maintenance: solar energy, coupled to CO2 cooling, waste heat used for floor heating, drinking water heating and ice water production
Additional systems: compressed air, conditioning, motion-sensor

Finishes

The Fruechte Boqoui facility is finished with a focus on durability, hygiene, and efficiency. Hygienic ceramic floors ensure compliance with the highest food safety standards, while wall finishes are designed to facilitate easy maintenance and long-term, durable resilience.

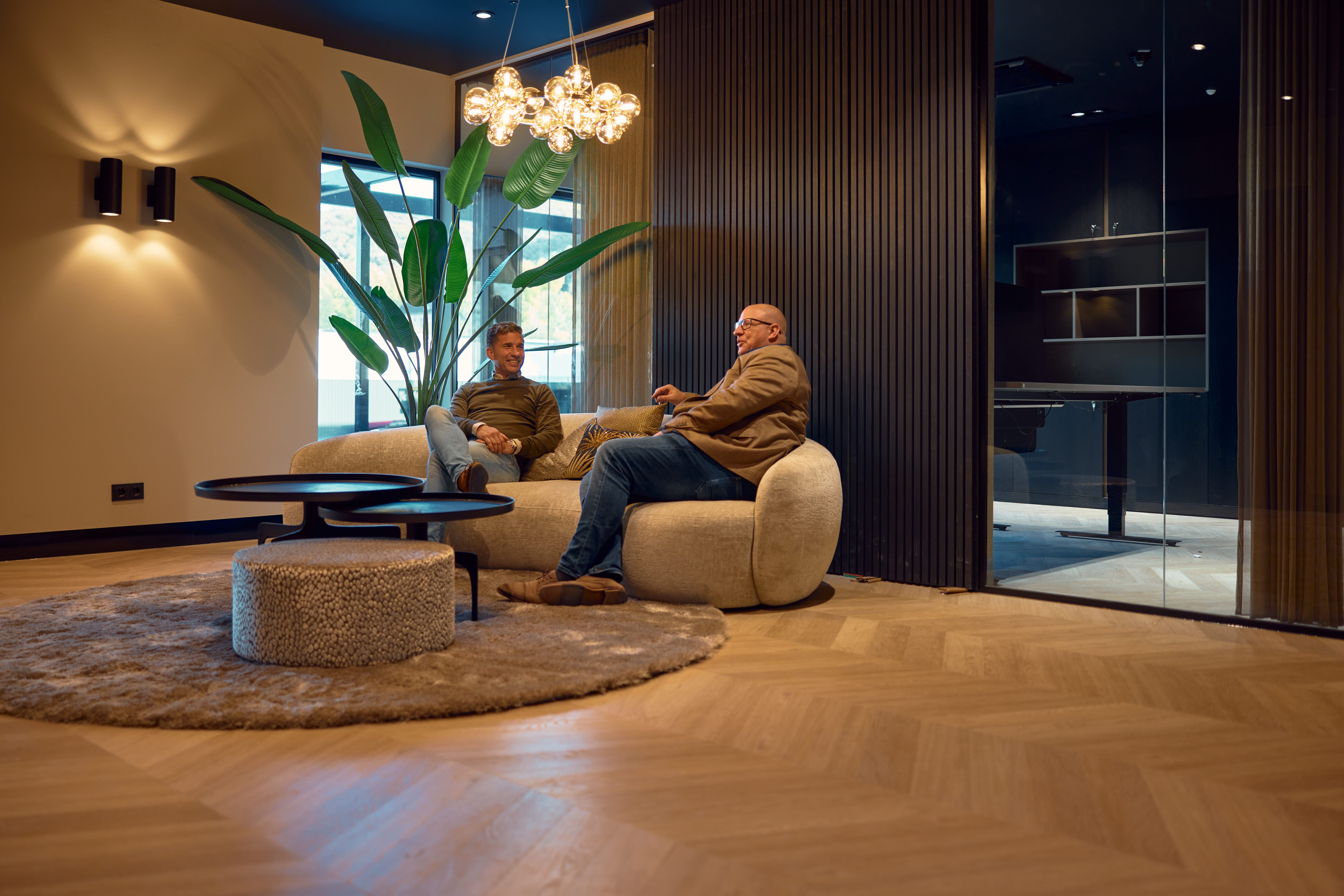

The office spaces feature a modern, professional aesthetic. The 780 m² office space features hotel-quality interior finishing, creating a professional and welcoming atmosphere that combines luxury with functionality.

Unique features

One of the standout features of this project is the innovative integration of an 800 millimeter raised foundation into a hillside, ensuring stability and maximizing usable space. Additionally, the 50 meter column-free span enables seamless workflows, while the solar-powered CO2 cooling system represents a leap forward in energy efficiency, recycling waste heat to power essential systems such as floor heating and hot water production.

This project incorporated advanced expertise, including 3D architectural and structural design, BIM integration modeling, prefabricated insulated construction, and free-span construction for seamless workflows.
